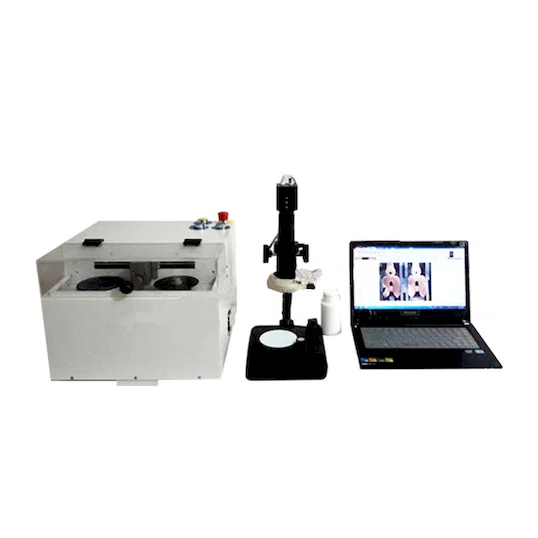

Analizador Portátil de Sección Transversal de Engarce para Cableado WPM-SES

Guarantee Superior Crimp Quality with the Ergonomic and High-Speed Crimp Cross-Section Analysis System

Introduction:

In today's manufacturing landscape, the reliability of wire harness crimp connections is paramount to the performance and safety of countless products. Introducing the Advanced Crimp Cross-Section Analysis System, a comprehensive and user-friendly solution designed to empower manufacturers with rapid and precise quality control. This system is engineered for efficient sample preparation, high-resolution imaging, and accurate analysis, providing critical insights into crimp quality and ensuring the long-term integrity of your wire harnesses. From automotive and aerospace to electronics and beyond, this system is your essential tool for maintaining the highest standards of crimp termination excellence.

Key Features and Benefits: Speed, Precision, and User-Centric Design

This Crimp Cross-Section Analysis System is a meticulously engineered solution that combines advanced technology with practical design, offering a suite of features designed to streamline your quality control process and deliver unparalleled accuracy:

• Integrated Cutting and Grinding for Rapid Sample Preparation: At the heart of the system is an integrated cutting and grinding module. This advanced unit performs both crucial sample preparation steps in a single, seamless operation, significantly accelerating the workflow and ensuring consistent, high-quality cross-sections. This integrated approach minimizes manual handling and potential errors, leading to more reliable analysis.

• High-Speed Analysis: Results in Under 5 Minutes: Time is of the essence in manufacturing. This system is designed for rapid throughput, capable of completing the entire processing and analysis of a single terminal cross-section within 5 minutes. This exceptional speed dramatically improves the efficiency of your quality inspection process, enabling faster feedback, quicker issue resolution, and increased production capacity.

• Ergonomic and Modular Design for User Convenience: Operator comfort and ease of use are key considerations in the design of this system. The ergonomic design minimizes user fatigue, while the modular combination allows for easy component access and maintenance. This user-centric approach ensures a smoother, more efficient workflow and reduces operator training time.

• Japan-Imported High-Definition Image Acquisition System for Unrivaled Clarity: Experience exceptional image quality with the Japan-imported high-definition image acquisition system. This system captures crisp, detailed cross-sectional images, enabling accurate measurement and analysis of even the most intricate crimp structures. The superior image clarity allows for precise evaluation of critical crimp parameters, ensuring reliable quality assessments.

• High-Performance Microscope with 3D Imaging Capabilities: The system incorporates a high-performance microscope that not only delivers ultra-high definition imaging but also generates upright three-dimensional spatial images. This advanced capability provides a strong stereoscopic sense and clear imaging with a wide field of view. This 3D perspective enhances the visual analysis of crimp structures, allowing for a more comprehensive understanding of crimp quality.

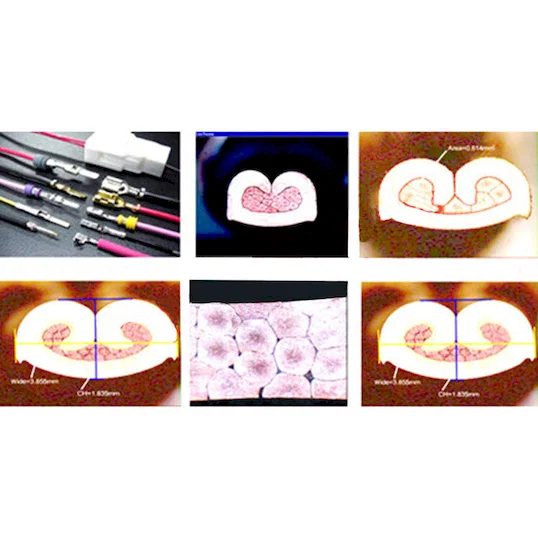

• Precise Measurement and Area Calculation with Specialized Software: Equipped with specialized software, this system allows for simple and correct measurement of length and area. The intuitive software interface facilitates accurate quantitative analysis of crimp parameters, providing objective data for quality assessment and process optimization. This precise measurement capability ensures consistent and reliable quality control.

• Robust Control System Powered by Japanese Mitsubishi PLC: At the core of the system's automation and control is a reliable Japanese Mitsubishi PLC controller (SBL). This industry-leading controller ensures stable and precise operation of all system modules, contributing to the overall accuracy and dependability of the analysis process.

• Wide Module Cut Range and Adjustable Speeds for Versatility: The system offers a module cut range of 0.13 to 6.00 mm2, accommodating a wide variety of wire sizes commonly used in harness manufacturing. Furthermore, adjustable rotate and grind speeds (2800 rpm), powered by imported German motors, allow for optimized sample preparation for different materials and terminal types. The cut speed of 2 mm/sec ensures efficient sample processing.

• German-Imported Precision Cutting Wheel for Clean and Durable Cuts: The cutting module utilizes a high-quality cutting wheel (inner diameter 21.7 mm, OD 105 mm, thickness 0.5 mm) imported from Germany. This delicate and durable blade ensures clean, precise cuts, minimizing deformation and preserving the integrity of the terminal cross-section for accurate analysis.

• Precise Z-Axis Tuning and X-Axis Shift for Optimized Sample Positioning: Fine-tune sample positioning with the Z-axis slightly tuning range of 0.00 to 5.00 mm and the X-axis shift driven by a Japanese Panasonic servo motor. These precise adjustments ensure optimal sample alignment for both cutting/grinding and imaging, contributing to consistent and accurate results.

• Eclipse Partial Electrolysis for Enhanced Surface Clarity: For challenging samples, the system incorporates eclipse partial electrolysis, capable of processing areas up to 6 mm2 with adjustable electrolysis times of 5 to 30 seconds. This feature enhances the surface clarity of the cross-section, improving image quality and analytical accuracy.

• Versatile Magnification and Observation Range: The optical system offers a wide range of magnification options (0.75x to 5.0x with 0.5 stuck position shift technology for both Amplify and Tooth Pitch), allowing for detailed observation of crimp features at various scales. The observation range spans 1.2 to 8.2 mm (X-axis direction), providing a comprehensive view of the crimp cross-section.

• Adjustable Ultra-Bright LED Illumination and XYZ Mobile Platform: Achieve optimal viewing conditions with an ultra-bright white LED light source with infinitely controllable intensity. The integrated XYZ-axis mobile platform with fine-tuning (range +/- 6 mm) allows for precise positioning and examination of different areas within the cross-section in three dimensions.

• Comprehensive Analysis Software and Data Recording: The system is bundled with Section-ms software and utilizes a Japanese industrial HD video system with a 3-megapixel camera and USB 2.0 connectivity for image capture and analysis. This integrated software suite provides a range of measurement tools, including enhanced measurement tools for compression ratios, certified for use in demanding industries like automotive, home appliances, and IT.

Technical Specifications:
